Torque Converter Outlet Relief Valve
Working on a 1986 Cat D4H series II SN 8PB01285 and having transmission and torque converter issues. A second class includes a converter charging valve which.
Residual Pressure Relief Valve 8mm Rs Components Indonesia
Setelah mengalir melalui torque converter oli lalu mengalir keluar dari torque converter melalui outlet relief valve.
Torque converter outlet relief valve. Torque converter outlet pressure is too high. VALVE GROUP-RELIEF -TORQUE CONVERTER OUTLET New Reconditioned Used. Air cooled oil cooler.
Selector and pressure control valve for transmission. Relief valve digunakan untuk melindungi torque converter dari tekanan yang berlebihan. The torque converter inlet oil pressure is limited by relief valve 15 mounted in the valve adapter.
History of the machine. Body of relief valve for converter outlet. Relief valve terpasang pada inlet circuit untuk menjaga tekanan didalam torque converter 873 kgcm2.
Ketika tekanan oli pada port A lebih dari 87. TORQUE CONVERTER ASSEMBLY - loader models Twin Disc Spec. Tekanan oli yang rendah merupakan indikasi adanya kebocoran pada converter aliran oli yang tidak cukup atau kerusakan pada relief valve itu sendiri dan akan menyebabkan.
N64201 complete parts list on Figs. High idle is correct Step 8 but stall rpm speed in Step 9 is. 2s1362 spring for relief valve.
Not enough oil in torque converter 19 because torque converter inlet relief valve 15 is open. 4T65E Transmission TCC Relief Valve Sonnax 84757-01K Set of 10 The torque converter piston is designed for operating pressures of 135psi but the OE apply pressure relief doesnt crack until 175 psi and can allow apply pressure to increase beyond that to over 225psi. Put spring 3 spacers 1 and valve spool 2 in position in relief valve body 6.
Caterpillar 1481928 VALVE-RELIEF TORQUE CONVERTER INLET. Make sure all of the parts of the torque converter outlet relief valve are clean and free of dirt and foreign material. SEAL 504 cm299 in ID.
Put clean SAE 30 oil on the parts of the torque converter outlet relief valve. Readjust torque converter outlet relief valve pressure Retest using pressure gauge Inspect converter outlet relief valve spool Replace outlet relief valve as needed Replenish oil level Clean oil flow circuit or dirty oil strainer Replace failed oil pump Repair air leaks on inlet side of pump Replace worn seals around the clutch piston Repair. The relief valve for converter outlet controls the maximum pressure in the torque converter.
Aliran oli dari transmission dan steering pump melewati port A menuju port A lalu ke pump torque converter. Request has expired and not available for quoting. Valve ini mengontrol tekanan minimal didalam torque converter.
The previous owner had the transmission rebuilt at a local Cat dealer about 500 hours ago. The request is not available for quoting. Relief valve for converter outlet.
When the pressure in the converter is approximately 415 kPa 60 psi spool 2 moves against the force of spring 1 to let the extra oil go to the oil cooler. The valve adapter is mounted between the control valve and the transmission case. TORQUE COVERTER - loader models Twin Disc spec.
Similar requests 422670 Netherlands Provincie Gelderland Laren. Tm 5-3805-258-24-1 950b power train specifications outlet relief valve for torque converter. Torque converter - tm-5-3805-258-24-1_135.
Refs1 - 49 on Fig. If looking at the outlet relief valve is ok. Lubrication line to rear of transmission.
SEAL -COVER AND ELBOW TO WATER PIPE. 38 39 and 40 shown below Includes. The coupler includes a pump to provide fluid to the torque converter under pressure and an externally adjustable fluid pressure regulator to vary the pressure of the fluid provided to the torque converter.
Tekanan oli didalam torque converter harus tetap dijaga agar dapat mengurangi kavitasi karena kavitasi dapat mengurangi effisiensi converter. Assemble Torque Converter Outlet Relief Valve. Caterpillar 1481928 VALVE-RELIEF TORQUE CONVERTER INLET Request info.
A coupler is disclosed to allow a torque converter mounted to an engine to drive a transmission or other driveline component that is not constructed for use with a torque converter. Failure in oil pump 11 or torque converter 19. Torque converter outlet relief valve berfungsi mempertahankan tekanan oli didalam torque converter untuk mencegah kavitasi dan memastikan kerja converter yang effisien.
It goes back to large internal leak in brakesteer system transmission or bad. The first of these known systems includes a safety relief valve at the inlet to the torque converter and a relief valve at the outlet of the torque converter wherein each relief valve requires a separate spool and spring since the pressures to which the two valves respond are different. Too much restriction in oil cooler 17.
CHECK VALVE OUTLET 3 pcs. The relief valve limits the pressure to the torque converter to 750 kPa 110 psi The transmission hydraulic controls are installed on top of the transmission case. 6-206 and 6-210 no longer available order R49323 torque converter assembly and refs.
Water cooled oil cooler. Lubrication line to front of transmission.
Pressure Relief Valves Mogas
Rpcc Cartridges Pressure Control Relief Sun Hydraulics
Book 2 Chapter 18 Pressure Relief Valves Hydraulics Pneumatics
Pin By Shinjo Valve On Valves Relief Valve Safety Valve Valve
Ratlo Valve For The Torque Converter
Pressure Relief Valves Protection For Pneumatic And Compressed Air Systems
Truck 777f Off Highway Truck Power Train Relief Valve Pilot Control Pressure Torque Converter Inlet And Outlet Relief Valves Modulating Valve Torque Converter Lockup Clutch
Truck 777f Off Highway Truck Power Train Relief Valve Pilot Control Pressure Torque Converter Inlet And Outlet Relief Valves Modulating Valve Torque Converter Lockup Clutch
Rdha Cartridges Pressure Control Relief Sun Hydraulics
Rdda Cartridges Pressure Control Relief Sun Hydraulics
7g1564 Torque Converter Inlet Relief Valve Group Part Of 7g326 Power Train Oil Lines Group Shown On Pages 128 129d D10 Avspare Com

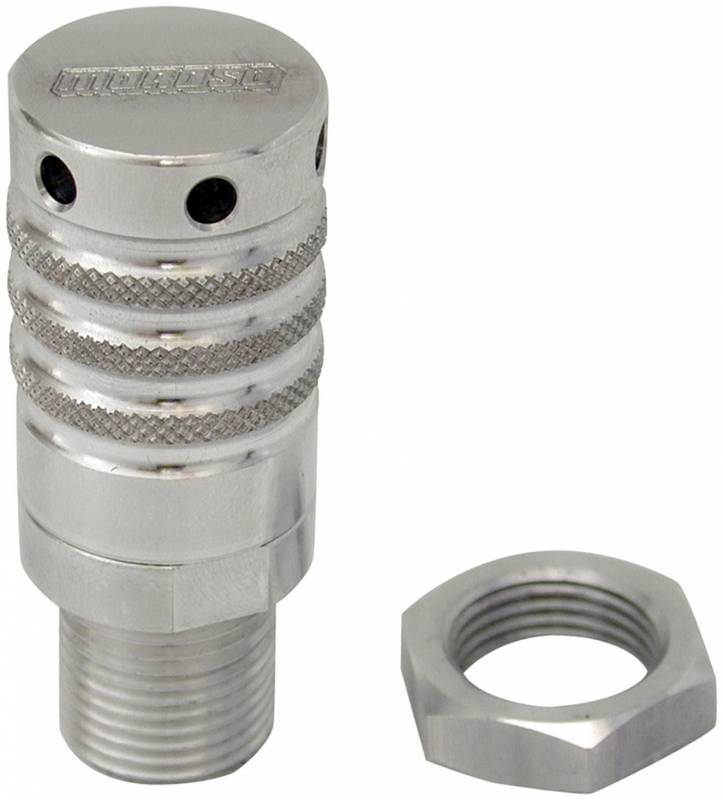

Moroso Adjustable Vacuum Relief Valve Mor 22637
